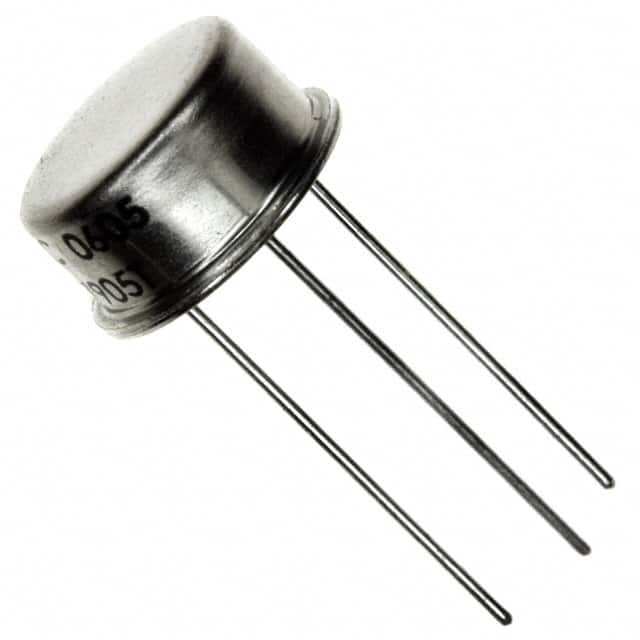

2N5109 Image Image may be representation.
See specs for product details.
2N5109Microsemi Corporation RF TRANS NPN 20V 1.2GHZ TO39
Part Number2N5109
PackageTO-205AD, TO-39-3 Metal Can
ManufacturerMicrosemi
RoHs Status
Manufacturer Part NumberMicrosemi Corporation-2N5109
DescriptionRF TRANS NPN 20V 1.2GHZ TO39
In stock3743
Data sheet
1.2N5109.pdf 2.2N5109.pdf 3.2N5109.pdf 4.2N5109.pdf 5.2N5109.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 3743 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - 2N5109
  • 2N5109 Tech Specifications
    Microsemi Corporation - 2N5109 technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation - 2N5109
    Manufacturer Microsemi
    Voltage - Collector Emitter Breakdown (Max) 20V
    Transistor Type NPN
    Supplier Device Package TO-39
    Series -
    Power - Max 2.5W
    Package / Case TO-205AD, TO-39-3 Metal Can
    Package Bulk
    Operating Temperature -
    Noise Figure (dB Typ @ f) -
    Mounting Type Through Hole
    Gain 12dB
    Frequency - Transition 1.2GHz
    DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 50mA, 15V
    Current - Collector (Ic) (Max) 400mA
  • The2N5109is a Discrete Semiconductor Products component, full developed and mass-produced by Microsemi Corporation manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is RF TRANS NPN 20V 1.2GHZ TO39 and it falls under the category of Transistors - Bipolar (BJT) - RF, with Manufacturer of Microsemi and Voltage - Collector Emitter Breakdown (Max) of 20V and Transistor Type of NPN. Efficient purchasing through Microsemi-Corp.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for 2N5109 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute 2N5109 MRF5812MR2 2N5031 2N5179
Part Number 2N5109 MRF5812MR2 2N5031 2N5179
Manufacturer Microsemi Corporation Microsemi Corporation Microsemi Corporation Microsemi Corporation
Noise Figure (dB Typ @ f) - - - 4.5dB @ 200MHz
Voltage - Collector Emitter Breakdown (Max) 20V - 10V 12V
Transistor Type NPN - NPN NPN
Package / Case TO-205AD, TO-39-3 Metal Can - TO-206AF, TO-72-4 Metal Can TO-206AF, TO-72-4 Metal Can
DC Current Gain (hFE) (Min) @ Ic, Vce 40 @ 50mA, 15V - 25 @ 1mA, 6V 25 @ 3mA, 1V
Mounting Type Through Hole - Through Hole Through Hole
Operating Temperature - - - -
Current - Collector (Ic) (Max) 400mA - 20mA 50mA
Frequency - Transition 1.2GHz - 400MHz 200MHz
Series - - - -
Supplier Device Package TO-39 - TO-72 TO-72
Power - Max 2.5W - 200mW 300mW
Gain 12dB - 12dB @ 400MHz 20dB
Package Bulk Tape & Reel (TR) Bulk Bulk
  • Microsemi Corporation Related Products
  • 2N5109 Download Datasheets (5)
