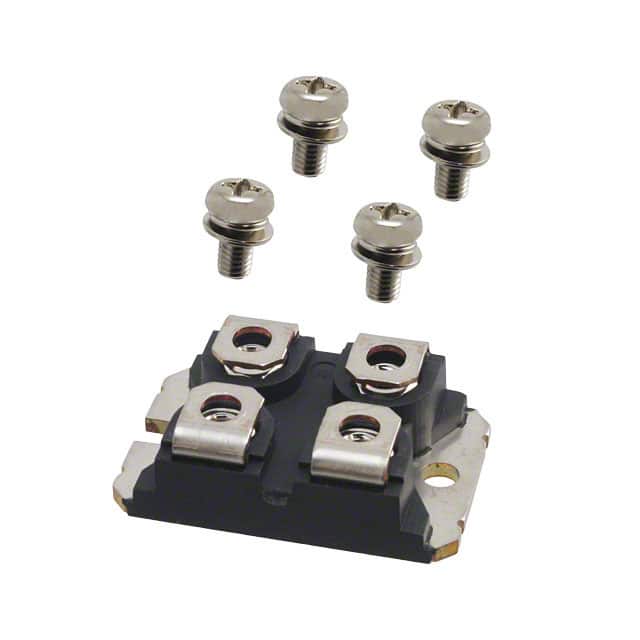

APT2X100D30J Image Image may be representation.
See specs for product details.
APT2X100D30JMicrosemi Corporation DIODE MODULE 300V 100A ISOTOP
Part NumberAPT2X100D30J
PackageSOT-227-4, miniBLOC
ManufacturerMicrosemi
RoHs Status
Manufacturer Part NumberMicrosemi Corporation-APT2X100D30J
DescriptionDIODE MODULE 300V 100A ISOTOP
In stock3839
Data sheet
1.APT2X100D30J.pdf 2.APT2X100D30J.pdf 3.APT2X100D30J.pdf 4.APT2X100D30J.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 3839 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - APT2X100D30J
  • APT2X100D30J Tech Specifications
    Microsemi Corporation - APT2X100D30J technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation - APT2X100D30J
    Manufacturer Microsemi
    Voltage - Forward (Vf) (Max) @ If 1.4 V @ 100 A
    Voltage - DC Reverse (Vr) (Max) 300 V
    Technology Standard
    Supplier Device Package ISOTOP®
    Speed Fast Recovery =< 500ns, > 200mA (Io)
    Series -
    Reverse Recovery Time (trr) 47 ns
    Package / Case SOT-227-4, miniBLOC
    Package Tube
    Operating Temperature - Junction -55°C ~ 175°C
    Mounting Type Chassis Mount
    Diode Configuration 2 Independent
    Current - Reverse Leakage @ Vr 500 µA @ 300 V
    Current - Average Rectified (Io) (per Diode) 100A
    Base Product Number APT2X100
  • TheAPT2X100D30Jis a Discrete Semiconductor Products component, full developed and mass-produced by Microsemi Corporation manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is DIODE MODULE 300V 100A ISOTOP and it falls under the category of Diodes - Rectifiers - Arrays, with Manufacturer of Microsemi and Voltage - Forward (Vf) (Max) @ If of 1.4 V @ 100 A and Voltage - DC Reverse (Vr) (Max) of 300 V. Efficient purchasing through Microsemi-Corp.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for APT2X100D30J or order. We are always pleased to hear from you, so feel free to contact us at any time.
