HomeProductsDiscrete Semiconductor ProductsDiodes - Rectifiers - Single1N4534

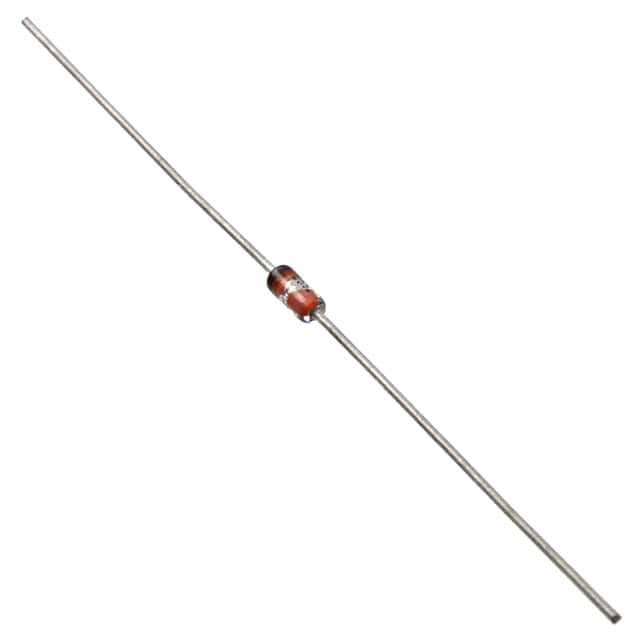

1N4534 Image Image may be representation.
See specs for product details.
1N4534Microsemi Corporation DIODE GEN PURP 50V 150MA DO34
Part Number1N4534
PackageDO-204AG, DO-34, Axial
ManufacturerMicrosemi
RoHs Status
Manufacturer Part NumberMicrosemi Corporation-1N4534
DescriptionDIODE GEN PURP 50V 150MA DO34
In stock12261
Data sheet
1.1N4534.pdf 2.1N4534.pdf 3.1N4534.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 12261 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - 1N4534
  • 1N4534 Tech Specifications
    Microsemi Corporation - 1N4534 technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation - 1N4534
    Manufacturer Microsemi
    Voltage - Forward (Vf) (Max) @ If 880 mV @ 20 mA
    Voltage - DC Reverse (Vr) (Max) 50 V
    Technology Standard
    Supplier Device Package DO-34
    Speed Small Signal =< 200mA (Io), Any Speed
    Series -
    Reverse Recovery Time (trr) 4 ns
    Package / Case DO-204AG, DO-34, Axial
    Package Bulk
    Operating Temperature - Junction -65°C ~ 175°C
    Mounting Type Through Hole
    Current - Reverse Leakage @ Vr 50 nA @ 50 V
    Current - Average Rectified (Io) 150mA
    Capacitance @ Vr, F -
    Base Product Number 1N4534
  • The1N4534is a Discrete Semiconductor Products component, full developed and mass-produced by Microsemi Corporation manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is DIODE GEN PURP 50V 150MA DO34 and it falls under the category of Diodes - Rectifiers - Single, with Manufacturer of Microsemi and Voltage - Forward (Vf) (Max) @ If of 880 mV @ 20 mA and Voltage - DC Reverse (Vr) (Max) of 50 V. Efficient purchasing through Microsemi-Corp.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for 1N4534 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute 1N4534 1N4531UR 1N4534UR 1N4531
Part Number 1N4534 1N4531UR 1N4534UR 1N4531
Manufacturer Microsemi Corporation Microsemi Corporation Microsemi Corporation Microsemi Corporation
Technology Standard Standard Standard Standard
Supplier Device Package DO-34 DO-213AA DO-34 DO-34
Speed Small Signal =< 200mA (Io), Any Speed Small Signal =< 200mA (Io), Any Speed Small Signal =< 200mA (Io), Any Speed Small Signal =< 200mA (Io), Any Speed
Package / Case DO-204AG, DO-34, Axial DO-213AA DO-204AG, DO-34, Axial DO-204AG, DO-34, Axial
Series - - - -
Voltage - Forward (Vf) (Max) @ If 880 mV @ 20 mA 1.2 V @ 100 mA 880 mV @ 20 mA 1.2 V @ 100 mA
Package Bulk Bulk Bulk Bulk
Capacitance @ Vr, F - - - -
Reverse Recovery Time (trr) 4 ns 20 ns 4 ns 20 ns
Mounting Type Through Hole Surface Mount Through Hole Through Hole
Operating Temperature - Junction -65°C ~ 175°C -65°C ~ 175°C -65°C ~ 175°C -65°C ~ 175°C
Current - Average Rectified (Io) 150mA 125mA 150mA 125mA
Current - Reverse Leakage @ Vr 50 nA @ 50 V 500 nA @ 75 V 50 nA @ 50 V 500 nA @ 75 V
Base Product Number 1N4534 1N4531 1N4534 -
Voltage - DC Reverse (Vr) (Max) 50 V 75 V 50 V 75 V
