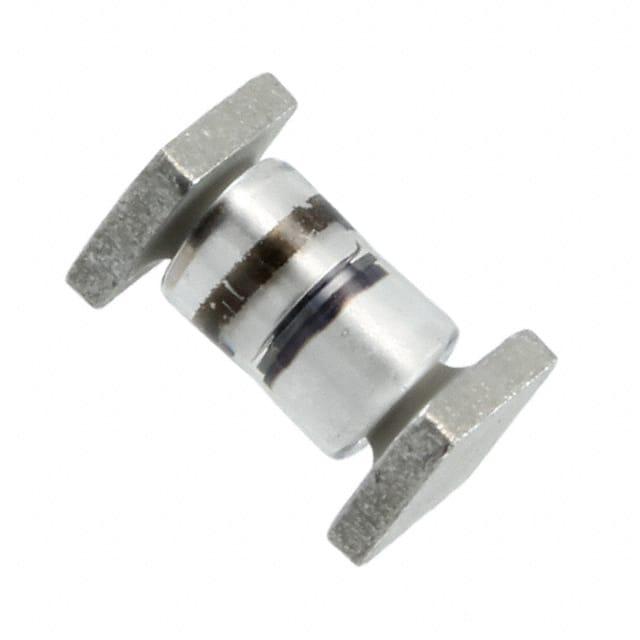

JANTX1N4480DUS Image Image may be representation.
See specs for product details.
JANTX1N4480DUSMicrosemi Corporation DIODE ZENER 43V 1.5W D5A
Part NumberJANTX1N4480DUS
PackageSQ-MELF, A
ManufacturerMicrosemi
RoHs Status
Manufacturer Part NumberMicrosemi Corporation-JANTX1N4480DUS
DescriptionDIODE ZENER 43V 1.5W D5A
In stock30537
Data sheet
1.JANTX1N4480DUS.pdf 2.JANTX1N4480DUS.pdf 3.JANTX1N4480DUS.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 30537 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - JANTX1N4480DUS
  • JANTX1N4480DUS Tech Specifications
    Microsemi Corporation - JANTX1N4480DUS technical specifications, attributes, parameters and parts with similar specifications to Microsemi Corporation - JANTX1N4480DUS
    Manufacturer Microsemi
    Voltage - Zener (Nom) (Vz) 43 V
    Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA
    Tolerance ±1%
    Supplier Device Package D-5A
    Series Military, MIL-PRF-19500/406
    Power - Max 1.5 W
    Package / Case SQ-MELF, A
    Package Bulk
    Operating Temperature -65°C ~ 175°C
    Mounting Type Surface Mount
    Impedance (Max) (Zzt) 40 Ohms
    Current - Reverse Leakage @ Vr 50 nA @ 34.4 V
    Base Product Number 1N4480
  • TheJANTX1N4480DUSis a Discrete Semiconductor Products component, full developed and mass-produced by Microsemi Corporation manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is DIODE ZENER 43V 1.5W D5A and it falls under the category of Diodes - Zener - Single, with Manufacturer of Microsemi and Voltage - Zener (Nom) (Vz) of 43 V and Voltage - Forward (Vf) (Max) @ If of 1 V @ 200 mA. Efficient purchasing through Microsemi-Corp.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for JANTX1N4480DUS or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute JANTX1N4486DUS JANTX1N4480CUS JANTX1N4482DUS JANTX1N4483DUS
Part Number JANTX1N4486DUS JANTX1N4480CUS JANTX1N4482DUS JANTX1N4483DUS
Manufacturer Microsemi Corporation Microsemi Corporation Microsemi Corporation Microsemi Corporation
Base Product Number - - - -
Supplier Device Package - - - -
Package / Case - - - -
Impedance (Max) (Zzt) - - - -
Mounting Type - - - -
Voltage - Forward (Vf) (Max) @ If - - - -
Power - Max - - - -
Series - * * *
Operating Temperature - - - -
Voltage - Zener (Nom) (Vz) - - - -
Current - Reverse Leakage @ Vr - - - -
Tolerance - - - -
Package - Bulk Bulk Bulk
